Hi Def 3D Plasma Profiling

SC4 Coping Robot

(Featured Image above shows Cell Opening Beams for TSI Structures)

Our state-of-the-art coping robot has been commissioned predominantly to produce cellular beams. The hi-def plasma profiling robot makes portholes in steel sections resulting in a high quality, structural cellular beam. SC4 are now able to offer customers cellular beams competitively in high volumes.

As well as improving the services previously offered, the addition of our coping robot means we can now also offer;

Double mitres
Compound mitres
Skew cuts
Tapered TEEs
Web openings on beams and plate girders
Weld preps including notches and rat holes.

We are proving the machines capabilities more each month, meeting our clients needs and exceeding expectations.

“A huge thanks to Shay and the team at SC4 who provided an excellent service and impressive lead times using their new robotic plasma profiling line!”

– Grant Bayes, Buyer @ TSI Structures

Faster Turnarounds

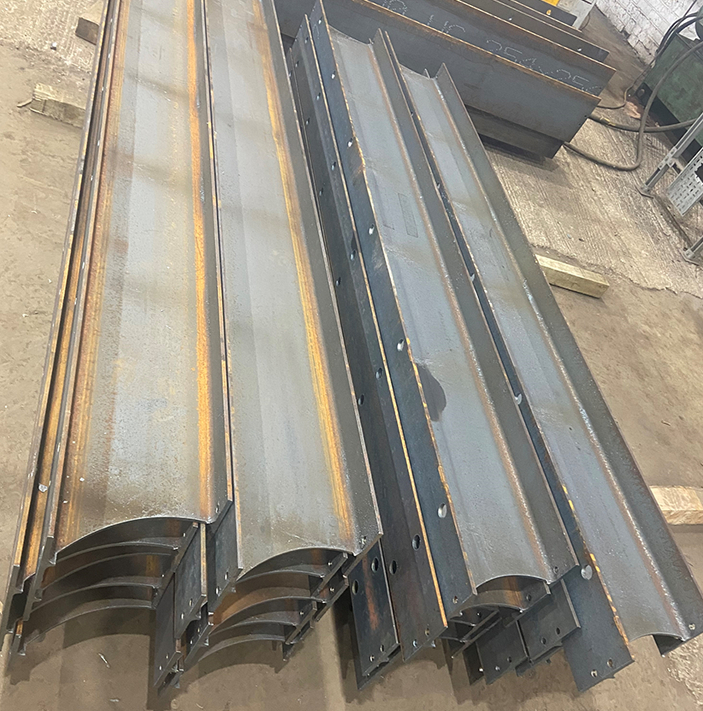

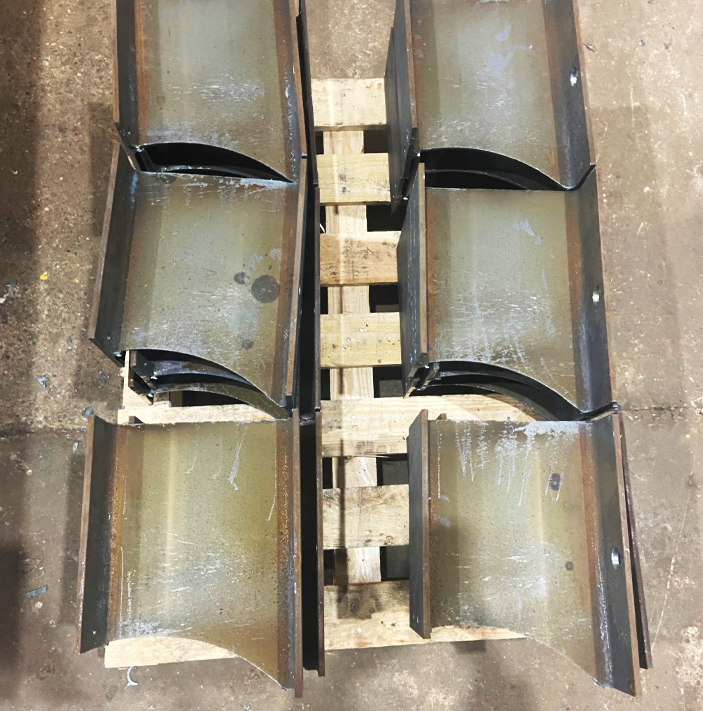

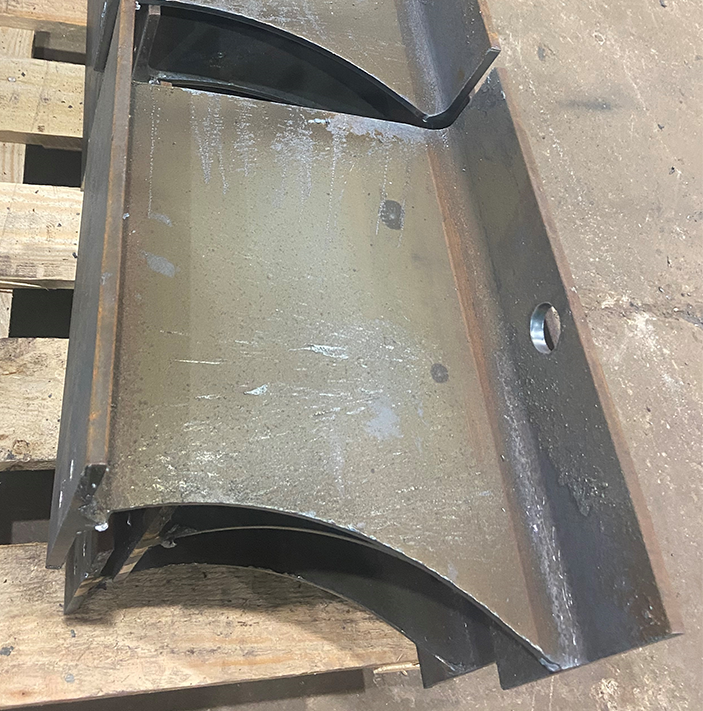

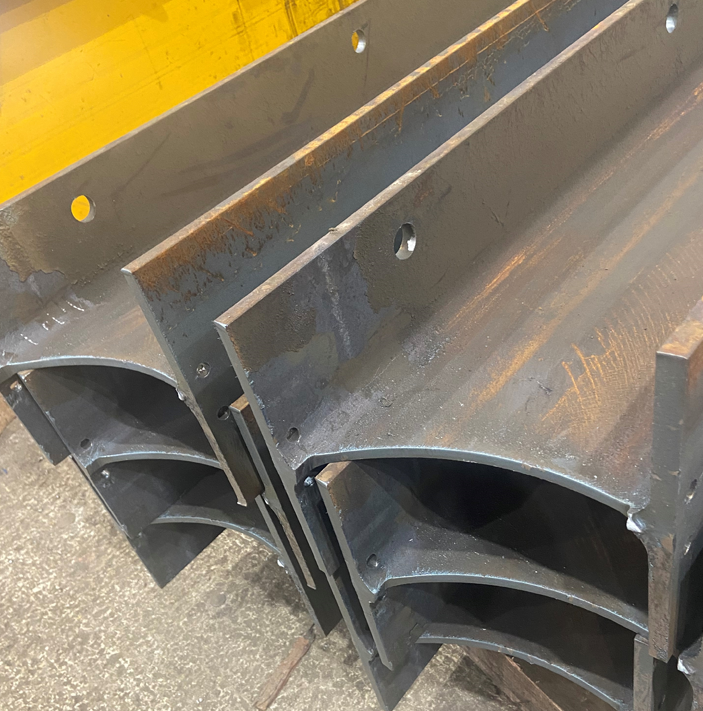

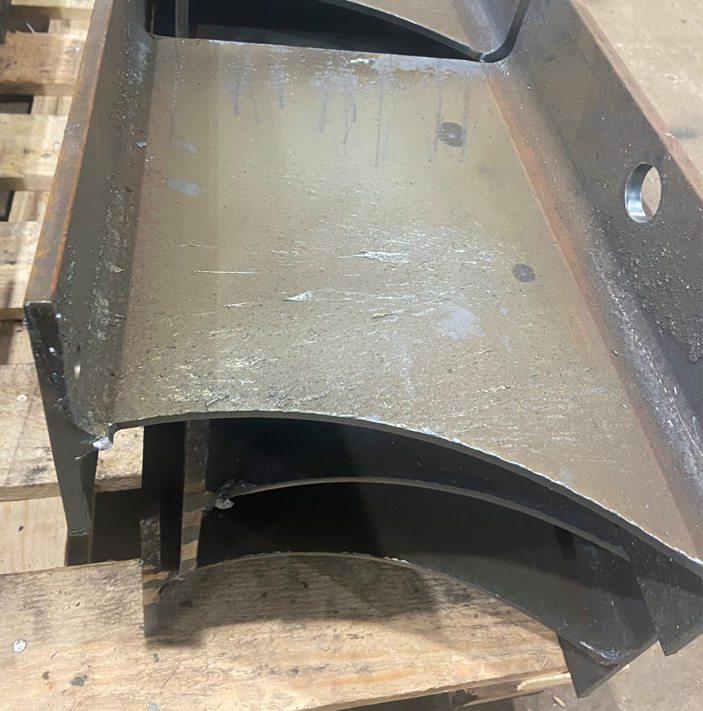

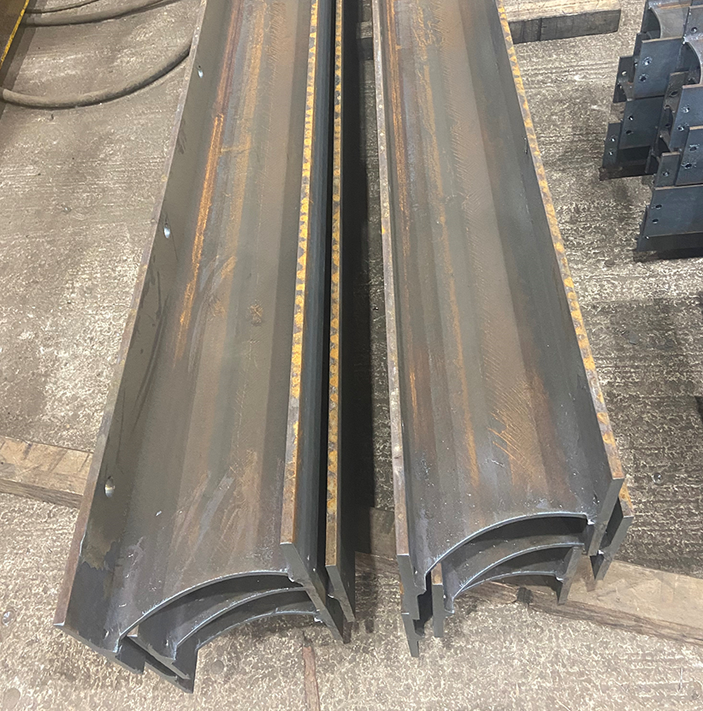

Our Coping Robot helped us make over 900 of these scallop end beams, including holes and slots, in various lengths for a recent customer. We then delivered them in sequenced lots to suit our customer’s fabrication schedule.

Gallery below shows Scallop End Beams:

Technical Specification

Haunches
Web openings on cellular beams and plate girders
Square cuts, mitres, double mitres and compound mitres
Skew cuts
Holes and slots
Weld preps
Flanges and legs trimmed
Coping and notching
Tapered beams and TEEs
Up to 18m lengths
Tolerances +/- 1mm
STEP, NC & DSTV files compatible
Alternatively, other file formats (EG. DWG/DXF) can be manually programmed in-house and added to your estimate if required

Did you know?

SC4 has a full in-house steel fabrication team that can work on your project directly rather than transporting your plate fittings elsewhere.
If your contract requires bespoke or an adapted process, our technical team will review your needs and help build a strategy that can be incorporated into your estimate. We offer competitive lead times and flexibility to suit your project, working on both free issue material and full supply.

If you want the simplicity of a fully managed project SC4 can also provide:
